漏电保护开关


主要用途与适用范围 Main Uses and Scope of Application

        ZK1-32L/40L 系列漏电保护开关 ( 以下简称保护开关 ) 适用于额定工作电压 230V/50HZ,额定电流不大于 40A 的单相电源线路的防触电、漏电保护。保护开关适用于空调、电热水器、太阳能热水器、自动售货机、饮水机、电冰箱洗衣机等用电设备上提供漏电保护尤其是适用于 5P 以下家用空调电源螺钉接线安装,具有防触电与漏电保护功能。保护开关符合国家标准
GB16916.1《家用和类似用途的不带过电流保护的剩余电流动作断路器 (RCCB)》。本产品无过栽保护与短路保护功能。
        ZK1-32L/40L series earth leakage circuit breaker (hereinafter referred to as protection switch) is applicable for single-phase power lines of rated working voltage 230V/50HZ and rated current not exceed 40A, for protecting against electric shock or earth leakage. It is applicable for air conditioners, electric heaters, solar water heaters, vending machines, water dispensers, refrigerators, washing machines and other electric equipment, especially suitable for household air conditioners under 5P with power screw wiring installation, with functions of electric shock and leakage protection. This protection switch is in conformity with the national standard GB16916.1 Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCB). It has no overload or short-circuit protection.

正常使用工作条件

安装地点为海拔不超过 2000 米的室内。
周围空气温度 -5℃� +40℃,24 小时内的平均温度值不超过 +35℃。
大气的相对湿度在周围空气温度为 +40℃时不超 50%,在较低温度下 ( 不高于 20℃ ) 可以有较高的相对湿度,湿度不超过90% 。
产品应安装在无显著震动或冲击、无雨雪侵袭的室内场所应安装在不潮湿、干燥的位置;安装场所附近磁场在任何方向不应超过地磁场的 5 倍。

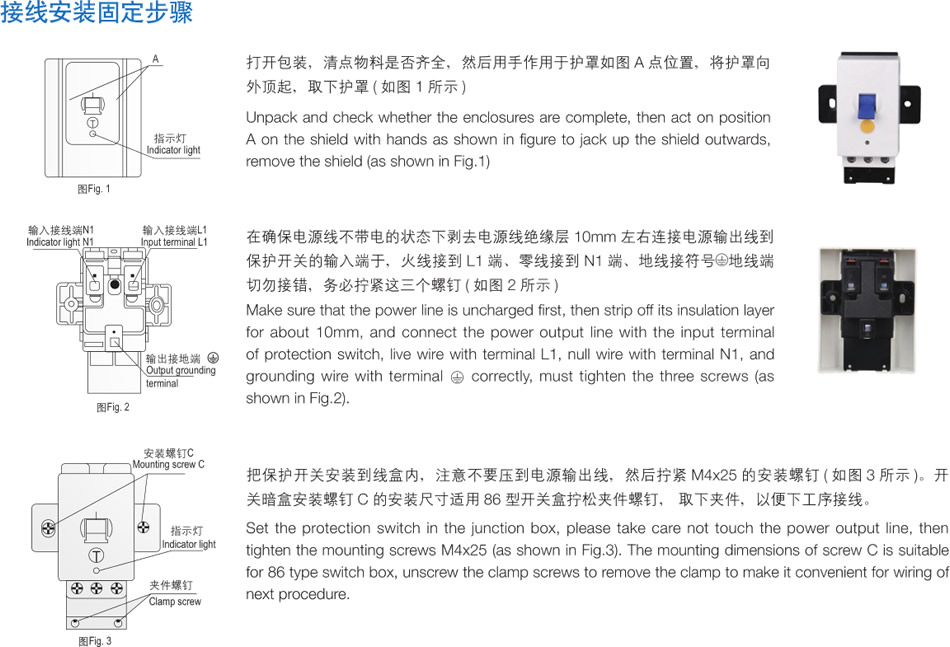

安装固定方式:用螺钉固定安装在室内墙壁埋入式接线盒上或直接明装于墙壁上 ( 产品与明装附件 FM 配套安装 )。

Indoor environment where the altitude should not exceed 2000m;
Ambient air temperature should be within -5℃ ~+40℃ , the mean value within 24h should not exceed +35℃ ;
Air relative humidity should not exceed 50% at +40℃ , higher relative humidity is allowable at lower temperature condition (nothigher than 20℃ ), humidity not exceed 90%;
It should be installed in dry places where are free of impact vibration or snow rainfall attack, the magnetic field around shouldnot exceed 5 times as much as earth magnetic field in any direction;
Installation and fixation methods: install in the embedded junction box on the wall indoors by screws or flush installed on thewall directly (installed with flush mounting accessories FM).
